Connection Module Cat. 6A, 1xRJ45/u, Special, 100x

Article no.: R510087
EAN / GTIN: 7611821049302
Delivery Unit: 100
Unit of Measure: Piece
The module for the highest standards. Guarantees the best performance reserves for 10G Ethernet cabling and beyond.

The R&Mfreenet Category 6A unshielded connection modules, part of the Advanced cabling system, are ideal for voice, fast data transmissions and high bandwidth applications. This high-performance Category 6A module is perfect for use in 10 Gigabit Ethernet (10GBASE-T) and future high-speed applications to 500 MHz.

Scope of supply

RJ45 Category 6A ISO connection module, unshielded, without mounting plate

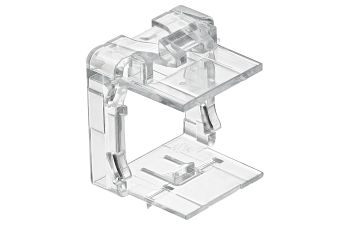

Dust cover

Cable tie

Installation instructions

Technical Data
Category connector (A) Cat. 6A ISO
Connector type (A) RJ45
Shielding connector (A) unshielded
Protection class IP IP 20
PoE Yes
Connector class connection module
Wiring diagram T568A and T568B
Holder for connector / module Special (without mounting plate)
Poles 8
Mechanical Data
Color red
Electrical Data
Standard UL Listed
IEC 60603-7-41: Electrical Characteristics of the Telecommunication Outlets
ISO/IEC 11801
EN 50173-1
More performanceInnovation in twisted-pair connection technology

Reliable high-frequency data transmission

High performance enables 2 m short links

Guaranteed 4dB margin NEXT on permanent link or channel

High density in the patch panel and rack

Assembly saves time and cost

More securityInnovatively protected signal transmission

Consistent performance

Large-area color coding

100% quality control

More convenience
  • Quick and simple installation

  • Reliable IDC technology

    Automatic cutting of wires

    Each module delivered with protective cover

    0° and 90° orientation in one module

    Exceeds the Category 6A ISO specification (mated) for the entire re-embedded plug range as specified by IEC 60603-7-51 (shielded), 60603-7-41 (unshielded) and IEC 60512-27-100. Exceeds the Category 6 A specification (mated) for the entire re-embedded plug range as specified by TIA/EIA 568.2-D

    Achieves exceptional margins when installed as part of an R&M Category 6A ISO 4-connector channel or permanent link, exceeding the IEEE 802.3TM Section Four minimum requirements for 10GBASE-T performance, as well as the requirements for Class EA performance according to ISO/IEC 11801 and Category 6A performance according to TIA/EIA 568.2-D

    Meets the requirements of ISO/IEC TR11801-9905 together with Cat.7A installation cables with AWG22 and allows for 25GBase-T transmission up to 30m.

    Automatic cutting of wires for precise, consistent termination

    X-Separator isolates pairs from each other, minimizing influence of cable termination on NEXT performance

    Use of all four sides of modules maximizes distance between pairs for optimum performance

  • GHMT and 3P certifications for Category 6A ISO component performance

  • RJ45 connection module of Category 6A ISO, for the setting up of transmission channels of Class EA with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) and Class F on 2 pairs, complies with Category 6A requirements of the standards ISO/IEC 11801, EN 50173-1 as well the U.S. standard Category 6A according to TIA/EIA 568.2-D, re-embedded tested in acc. with IEC 60603-7-41 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.

    Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

    Tested in line with R&M's manufacturing control, performing 100% inspection.

    Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection with automatic wire cutting of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. X-Separator for individual pair shielding. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with >20 insertion cycles, contact resistance <5 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. 90° wire orientation without bending cable. With integralcable strain relief, including dust cover.

    Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

    Connection module Category 6A ISO, unshielded, with dust cover, cable tie and installation instructions.
