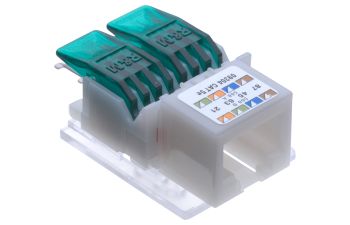

Connection Module Cat. 5e, 1xRJ45/u, 10x

Article no.: R925371
EAN / GTIN: 7611821003458
Delivery Unit: 10
Unit of Measure: Piece

R&M’s Category 5e connection modules, from the R&Mfreenet cabling system, are ideal for voice and fast data transmissions. This high-performance Category 5e module is perfect for use in 1 Gigabit Ethernet (1GBASE-T) applications to 100 MHz.

Scope of supply

  • RJ45 Cat. 5e connection module, unshielded

  • Mounting plate

  • Dust cover

  • Cable tie

  • Installation instructions

Technical Data
Category connector (A) Cat. 5e
Connector type (A) RJ45
Shielding connector (A) unshielded
Protection class IP IP 20
PoE Yes
Connector class connection module
Wiring diagram T568A and T568B
Holder for connector / module Mounting plate
Poles 8
Mechanical Data
Dimensions 16.4 mm x 21.4 mm x 40.9 mm / 0.646 in x 0.843 in x 1.61 in (W x H x D)
Color light gray
Material plastic: PC, UL 94 V-0
Electrical Data
Standard UL Listed
EN 50173-1
IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets
ISO/IEC 11801
  • Exceeds the Cat. 5e specification (mated) for the entire de-embedded plug range as specified by the standards (ISO/IEC 11801, EN 50173 and TIA/EIA 568.2-D)

  • Attains Cat. 5e values together with Cat. 5e patch cables, as specified in standard IEC 11801

  • Achieves best transmission characteristics with R&Mfreenet Cat. 5e patch cables

  • Gold-plated contact area and tin-plated insulation displacement contact area

  • Maximum reliability through special contact design that does not use internal transfer points such as printed circuit board

  • Capacitive and inductive compensation

RJ45 connection module of Category 5, for the setting up of transmission channels of class D with up to 4 plugged connections, complies with Category 5 requirements of the standards ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) as well as TIA/EIA 568.2-D, de-embedded tested in acc. with IEC 60603-7-2, interoperable and backwards compatible with Category 5e (2000) and Category 5 (1995).

Suitable for 1GBASE-T applications in acc. with IEEE 802.3™ Section Three over 100 m.

Tested in line with R&M's manufacturing control.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7.Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance <100 mOhm, dielectric strength >1000 Veff. Supports PoE (IEEE 802.3af), PoEP (IEEE 802.3at), 4PpoE (IEEE 802.3bt) and is compatible to IEC 60512-99-001/002. With integral cable strain relief, including dust cover.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Category 5e, with dust cover, mounting plate, cable tie and installation instructions.
