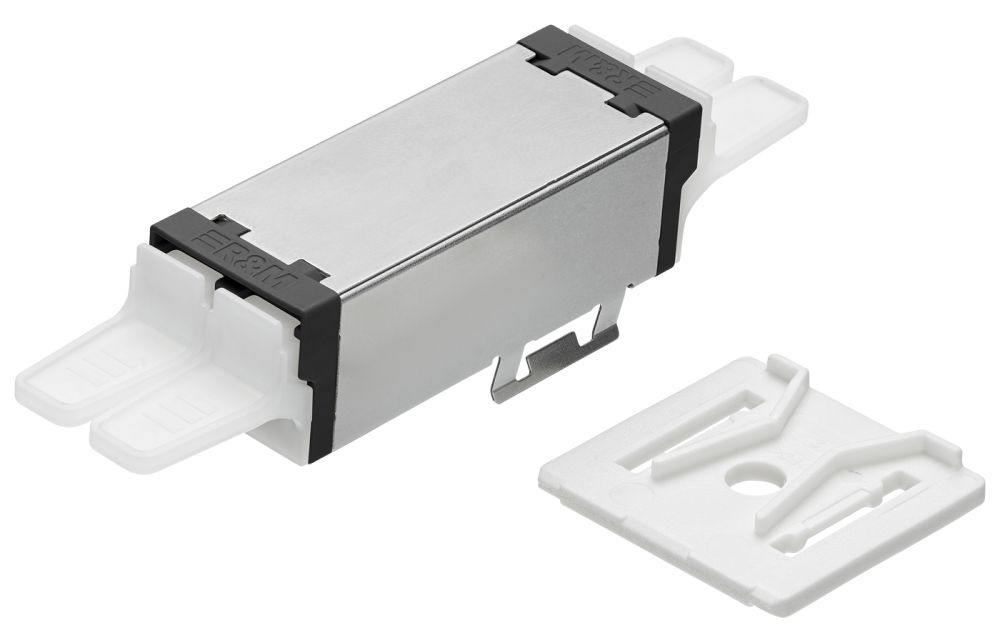

Adapter E-2000™-Compact PC, black, ceramic MM, M, support plate  Enlarge image

Product videos

Adapter E-2000™-Compact PC, black, ceramic MM, M, support plate

Article no.: R823268
EAN / GTIN: 7611821035107
Delivery Unit: 12
Unit of Measure: Piece
Adapter E-2000™-Compact flangeless with semi-transparent dust caps.



Scope of supply

Adapter E-2000™-Compact

Mounting plate

Technical Data
Fiber type Multimode (MM)
Number of connectors (A) 1
Connector type (A) E-2000™-Compact
Connector color (A) black
Polishing plug (A) PC
Protection class IP (A) IP 20
Protection class IP IP 20
Attenuation grade IL (A) M
Connector class adapter
Adapter fastening method end cap
Holder for connector / module Mounting plate
Sleeve material ceramic
Mechanical Data
Dimensions 67.7 mm x 16.4 mm x 14.7 mm / 2.665 in x 0.646 in x 0.579 in (W x H x D)
Material steel: X10CrNi18-8 (1.4310) / plastic: PBT, fiber-glass reinforced (halogen-free)
Electrical Data
Standard acc. to IEC 61754-15
acc. to DIN EN 186270
Metal housing

Integrated, spring-loaded shutters for dust and scratching protection

Long guiding section of connector body

Split ceramic sleeve

1000 mating cycles (zirconia ceramic alignment sleeve)

E-2000™-Compact adapter (LSHRJ) multimode (MM) in acc. with IEC 61754-15 and EN 186270. Flangeless body, color metallic, material X10CrNi18-8 and support plate for screwless mounting. Inner housing

black (multimode (MM) PC), material PBT / UL 94 V-0, zirconia (ceramic) alignment sleeve, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. The adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).

Optical specifications:

Delta insertion loss: ≤ 0.1 dB, testing method acc. to IEC 61300-3-4

Mechanical specifications:

Mating cycles: min. 1000

Pull-out force: min. 70 N

Optional:

Visual coding, mechanical coding and lock protection
