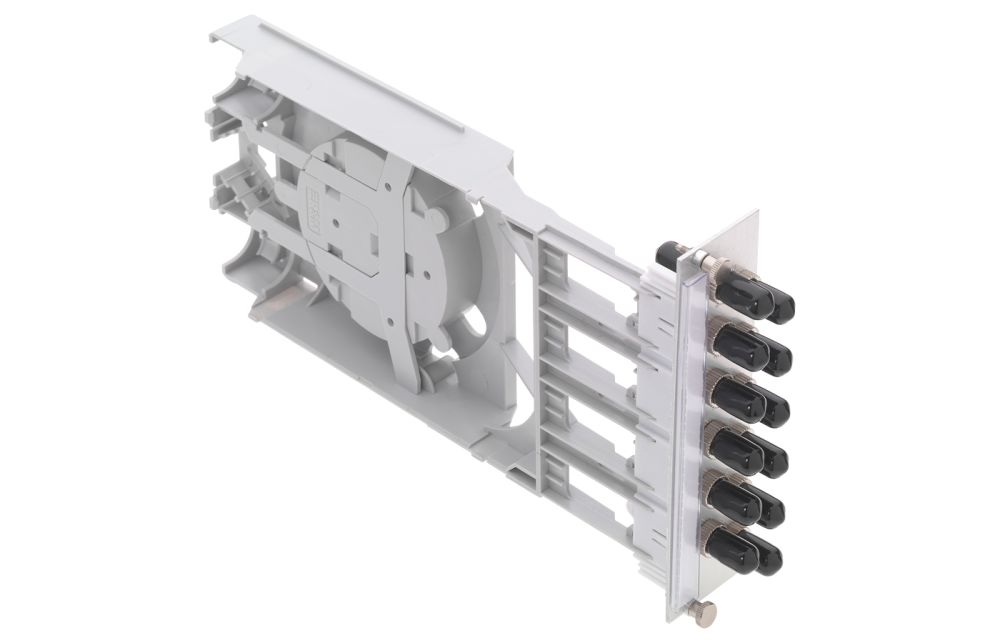

FiberModul 7HP, metal, breakout, 12xST multimode, PC, ceramic

Article no.: R318863
EAN / GTIN: 7611821053323
Delivery Unit: 1
Unit of Measure: Piece


Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions;

  • Metal front panel equipped with 12 x ST adapters.

Technical Data
Fiber type Multimode (MM)
Number of connectors (A) 12
Connector type (A) ST
Connector color (A) metallic
Polishing plug (A) PC
Protection class IP (A) IP 20
Protection class IP IP 20
Rack mounting version slide-in unit
Adapter fastening method screw
Assembly fully populated
Capacity (ports) 12
Sleeve material ceramic
Version breakout
Mechanical Data
Dimensions 35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)
Color Code NCS S 2502-B
Material plastic: PC, halogen-free
Electrical Data
Standard UL Listed
Adapter type BFOC/2.5 in acc. with IEC 61754-2

  • Up to 12 plugged connections on 7HP

  • Guaranteed bending radiusof 35 mm

  • Pre-numbered front plates, extra labeling field

  • Easy detachable metal front panels

  • Choice of cable entry of 45° or 90°

  • Hold-down cross protecting the fibers

  • Up to 144 fibers per 19" 3U Global patch panel

    Breakout module with integrated hold-down cross to protect the patch cord reserve, equipped with adapters, detachable metal front panel featuring per-numbered ports and offering individual labeling options.

    Fitted with 12 x ST adapter type BFOC/2.5, multimode in acc. with IEC 61754-2, with flange, mounted with hexagonal nut. Zirconia (ceramic) alignment sleeve, nickel-coated housing, material zinc casting, plastic dust covers. Adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).

    Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

    • Mechanical specifications:

  • Mating cycles: min. 500

  • Pull-out force: min. 70 N

    • Features:

  • Dimensions: 35 (7HP) x 129 (3U) x 225 mm (W x H x D)

  • Material front panel: metal (AlMg1)

  • Material master module: plastic (PC+ABS,halogen-free, UL 94 V-0)

  • Color front panel: metal color

  • Color master module: medium gray (NCS 2502-B)
