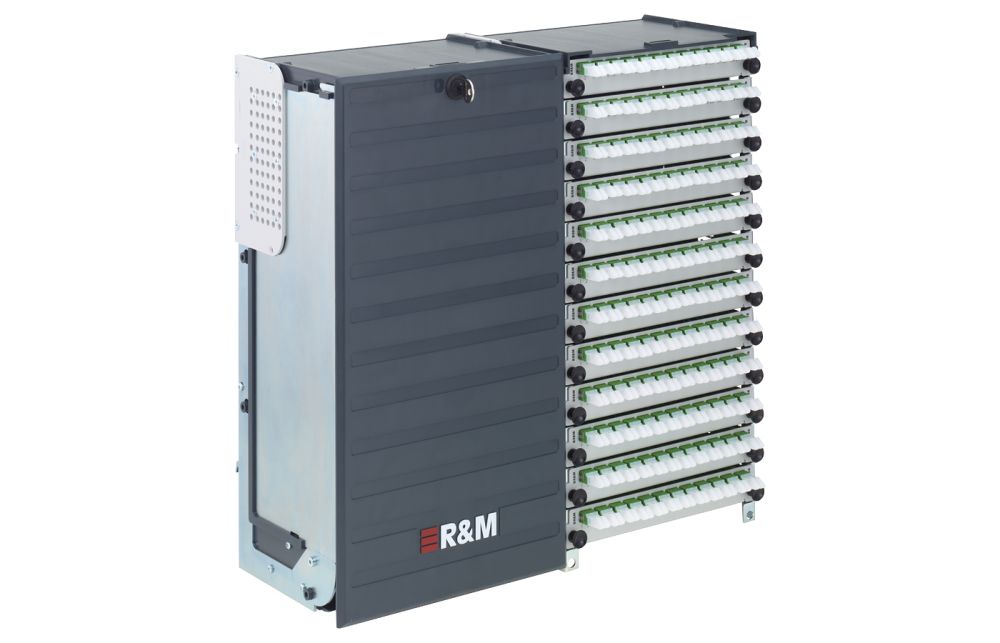

CombiMODULE Left ODF, 288xSC G.652.D, APC, ceramic, C/1, SE ANT

Article no.: R807367
EAN / GTIN: 7611821043256
Delivery Unit: 1
Unit of Measure: Piece

Completely assembled splice and patch unit with 288 fiber connections from patch insert to SCM splice trays SE.



Scope of supply

  • Complete CombiMODULE housing with fiber management

  • 12 Patch inserts, each equipped with 24 x SC adapters. System connection cables inserted and put in place.

  • Tray brackets forSCM trays

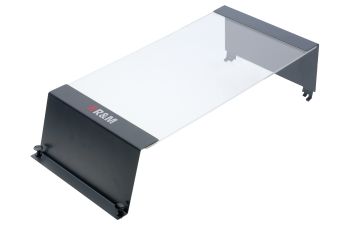

  • SCM cover set

  • 12 SCM splice trays for crimp splice protection type (ANT)

  • Labeling set

  • Installation instructions

Technical Data
Fiber type Singlemode (SM)
Fiber class G.652.D (OS1, OS2)
Fiber diameter n.a.
Number of connectors (A) 288
Connector type (A) SC
Connector color (A) green
Polishing plug (A) APC 8°
Protection class IP (A) IP 20
Return loss grade RL (A) 1
Attenuation grade IL (A) C
Rack mounting version patch panel
Assembly fully populated
Capacity (ports) 288
Sleeve material ceramic
Version splice
Mechanical Data
Dimensions 460.0 mm x 450.0 mm x 190.0 mm / 18.11 in x 17.717 in x 7.48 in (W x H x D)
Electrical Data
Standard Adapter and connector in acc. with IEC 61754-4
Fan-out color code: DIN VDE 0888
