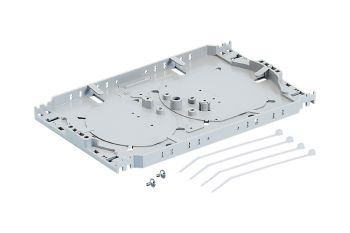

Splice Tray R40

Article no.: R308447
EAN / GTIN: 7611821056751
Delivery Unit: 1
Unit of Measure: Piece

Color: medium gray (NCS 2502-B).

Material: plastic (PC+ABS).

Dimensions: 116x10.5x188 mm (WxHxD).



Scope of supply

  • 1 splice tray radius R40

  • 4 cable ties

  • 2 screws for splice holder

  • Installation instructions

Mechanical Data
Dimensions 188.0 mm x 10.5 mm x 116.0 mm / 7.402 in x 0.413 in x 4.567 in (W x H x D)
Color Code NCS S 2502-B
Material plastic: PC + ABS

Splice tray accommodating the first 24 splices and storing excess fibers, guaranteeing a bending radius of ≥ 40 mm. Also designed to accommodate 2 splice holders each for sandwich or heat shrink splices. It includes of a radius 40 splice tray, 4 cable ties, 2 screws for the splice holders, installation instructions.

Dimensions: 116 x 10.5 x 188 mm (WxHxD)

Material: PC+ABS, medium gray (NCS 2502-B)
