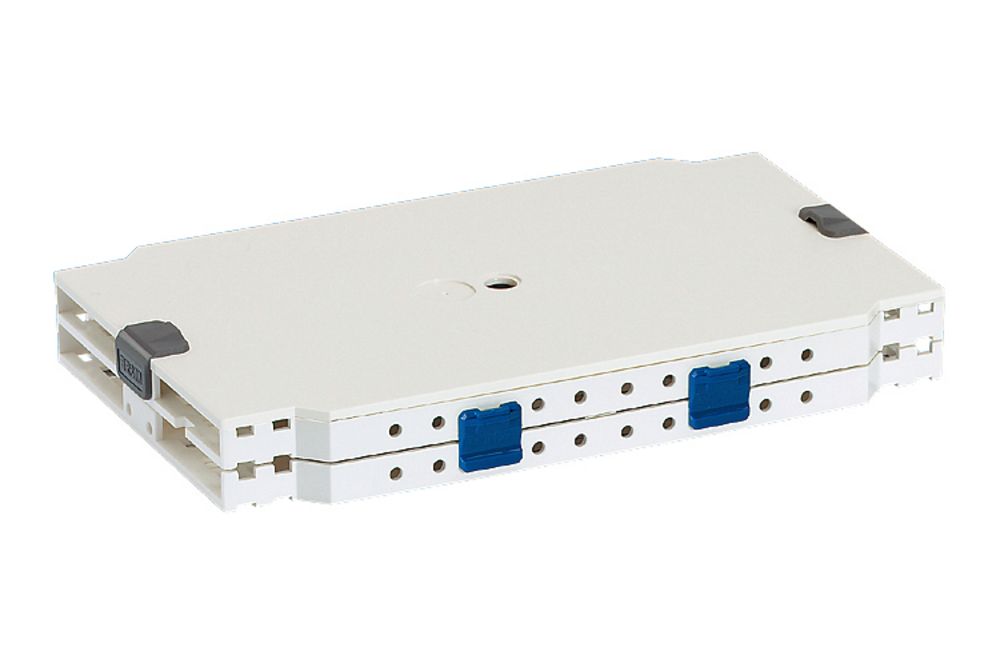

Splice Tray R30 for 19" 1U SpliceBox, white

Article no.: R306774
EAN / GTIN: 7611821057376
Delivery Unit: 1
Unit of Measure: Piece

To splice and store up to 24 FO terminations.

Color: pure white (RAL 9010).

Material: plastic (ABS).

Dimensions: 92x18x155 mm (WxHxD).

Scope of supply

  • 2 splice trays R30

  • 1 splice tray R30 cover

  • 4 insert hinges, small, blue

  • 2 magazine hinges, gray

  • 2 pigtail strain relieves

  • 3 one-point fastening cable ties

  • 8 cable ties

Mechanical Data
Dimensions 155.0 mm x 8.0 mm x 92.0 mm / 6.102 in x 0.315 in x 3.622 in (W x H x D)
Color Code RAL 9010 Pure white
Material plastic: ABS

Splice tray accommodating up to 24 splices and storing excess fibers, guaranteeing a bending radius of ≥ 30 mm. Also designed to accommodate splice holders for sandwich or heat shrink splices, featuring two splicetrays 94 in acc. with telecom standards, splice tray cover, 2 magazine hinges for the cover, 4 insert hinges for the splice trays, 2 strain relieves for 12 pigtails of Ø0.9 – 1.1 mm each, 8 cable ties, 2 screws for the splice holders and one plunger.

Dimensions: 92 x 18 x 155 mm (WxHxD)

Material: ABS, pure white (RAL 9010).
