Connector IP67, type 06, black, SC-RJ PC, MM, black, 127.0 (+3/-0) µm

Article no.: R315008
EAN / GTIN: 7611821054382
Delivery Unit: 50
Unit of Measure: Piece

Connector set with SC-RJ PC plug and housing IP67, type 06. Crimp set (Boot for Industrial cable and crimp sleeve for connector) not included in connector set.

Plug color: black.

Fiber: MM G50/125,G62.5/125 (OM4-OM1).

Ferrule: inner Ø 127 µm, tol. +3µm/0.

Different cable Ø and type on request.

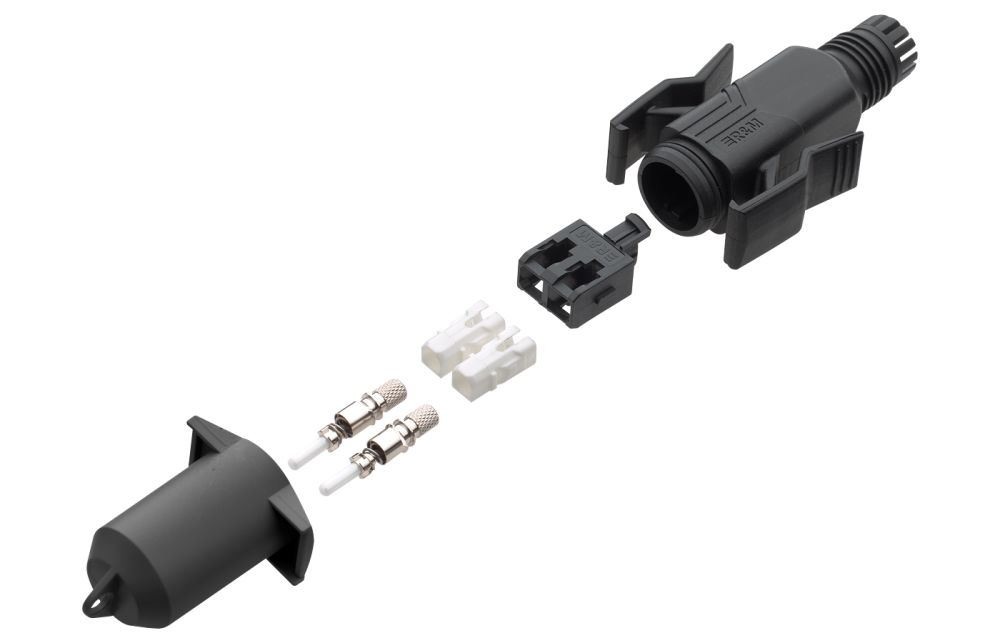

Scope of supply

  • SC interior housing incl. ferrule pre assembled

  • SC-RJ connector housing

  • Housing IP67, type 06, black

  • Instruction manual

Technical Data
Fiber type Multimode (MM)
Connector type (A) SC-RJ
Connector color (A) black
Polishing plug (A) PC
Protection class IP IP 67 (correlates to NEMA 6P)
Attenuation grade IL (A) Bm
Connector class connector
Electrical Data
Standard UL Listed
Type Picture Description Article

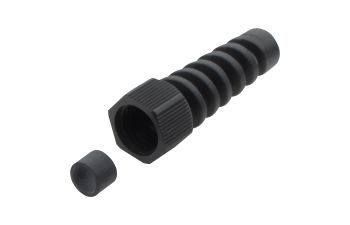

Accessories R315010
 PC
Tools R316697
 PC
