Crimp Set all Types E-2000™ / LC / SC, 3.0 mm cable, green

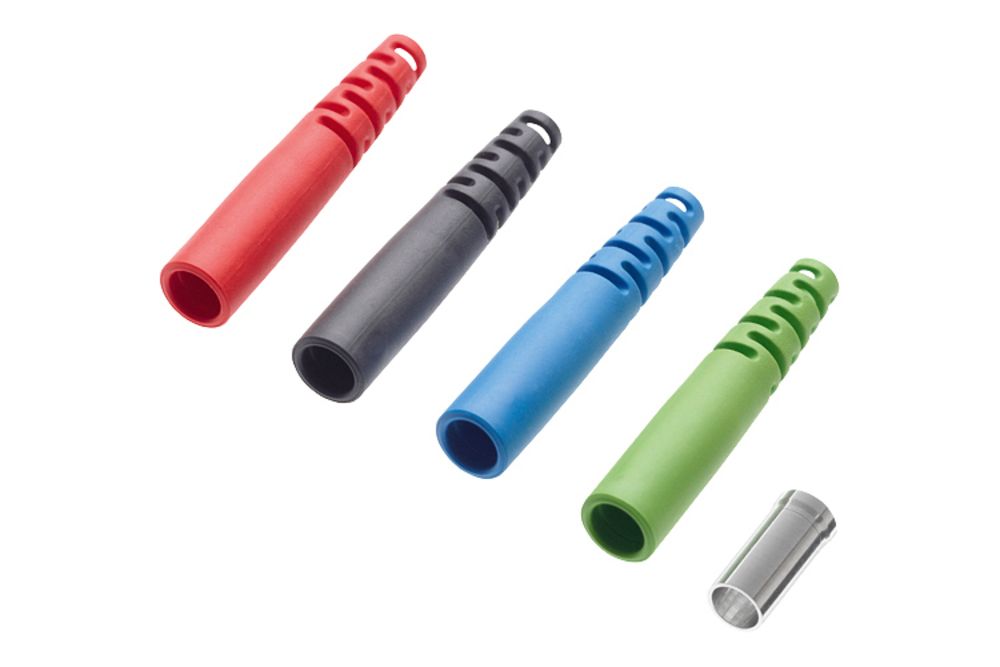

Crimp sleeve and colored connector boot. For cables from Ø 2.7 - 3.0 mm.

Material sleve: aluminum.

Material boot: TPE, self extinguishing, free of halogen.

Technical Data

Protection class IP	IP 20

Protection class IP

IP 20

Mechanical Data

Type	Picture	Description	Article

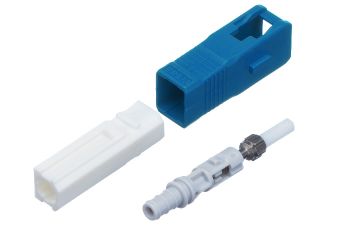

Accessories		Connector SC PC, SM, blue, 126 (+1/-0) µm	R840220	PC
Accessories		Connector SC PC, MM, beige, 126 (+1/-0) µm	R840221	PC

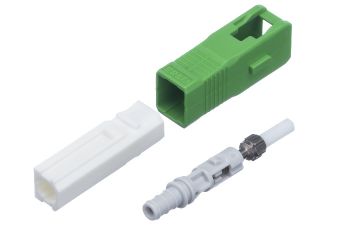

Accessories		Connector SC APC, SM, green, 125.2 (+0.5/-0) µm, 0.5 µm con	R847362	PC
Accessories		Connector SC APC, SM, green, 126.0 (+1/-0) µm	R847363	PC
Accessories		Connector SC PC, SM, blue, 125.2 (+0.5/-0) µm, 0.5 µm con	R847364	PC
Accessories		Connector SC PC, MM, beige, 127.0 (+3/-0) µm	R847816	PC
Tools		Crimp Die, E-2000™/LC/SC (R&M ferrule holder)	R316696	PC

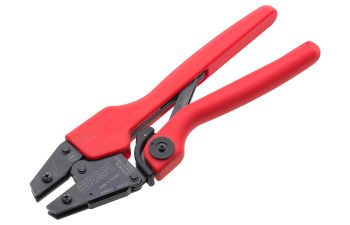

Tools		Crimping Tool	R316697	PC

Title	Type	Attachment
Technical drawing(s)	PDF	TECHNISCHE_ZEICHNUNG_502508_07-F.PDF
Technical drawing(s)	PDF	TECHNISCHE_ZEICHNUNG_2000072_07-A.PDF
