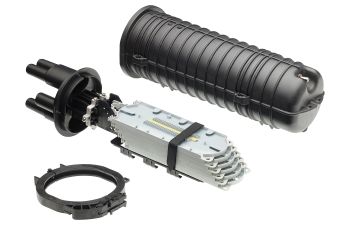

Dome Closure GSC-D20/50-N-LT/6, 144 splices

GSC dome closure compete ready-to-install for max. 144 fibers.

Dome closure complete with 6 splice trays with cover

1 pcs. heat shrink kits for oval cable entries

4 pcs. heat shrink kits for round cable entries

150 pcs. heat shrink splice protectors 45mm

Desiccant (silica gel)

Fiber transport tubes

Cable ties

Additional installation material

Installation instructions

Technical Data

Fiber count	144
Protection class IP	IP 68
Closure with grounding	No
Closure with valve	No
Closure with wall / pole holder	No
Distributor housing type	splice closure
Version	splice
Lockable	Yes

Mechanical Data

Type	Picture	Description	Article
Accessories		Wall Mounting Holder, closures Ø 125 - Ø 200 mm	R30378	PC
Accessories		Mastic Tape (Spare)	R30387	PC
Accessories		Desiccant (silica gel), 2x 60g	R30392	PC
Accessories		Shrink Tube Kit, Ø31/8x150	R307321	PC
Accessories		Shrink Tube Kit Oval, Ø75/23x150	R307323	PC
Accessories		Heat Protection Foil (Spare)	R307344	PC
Accessories		Shrink Tube Kit, Ø28/6x150	R509342	PC
Accessories		Desiccant (silica gel), 2x 20g	R509376	PC
Accessories		Wall and Pole Mounting Kit, Closures GSC-D20	R814626	PC
Accessories		Steel Cable Mounting Bracket Kit, Closures GSC-D20	R814628	PC

Title	Type	Attachment
Data sheet	PDF	DATA_SHEET_GSC-D20-50.PDF
Installation instruction	PDF	INSTALLATION_INSTRUCTION_820421_08-A.PDF
Other documents	PDF	ORDERING_INFO_GSC-CLOSURE.PDF
