19" 1U PC Patch Panel 24-Port/u, Cat. 6A, gray, empty - eCatalog

eCatalog

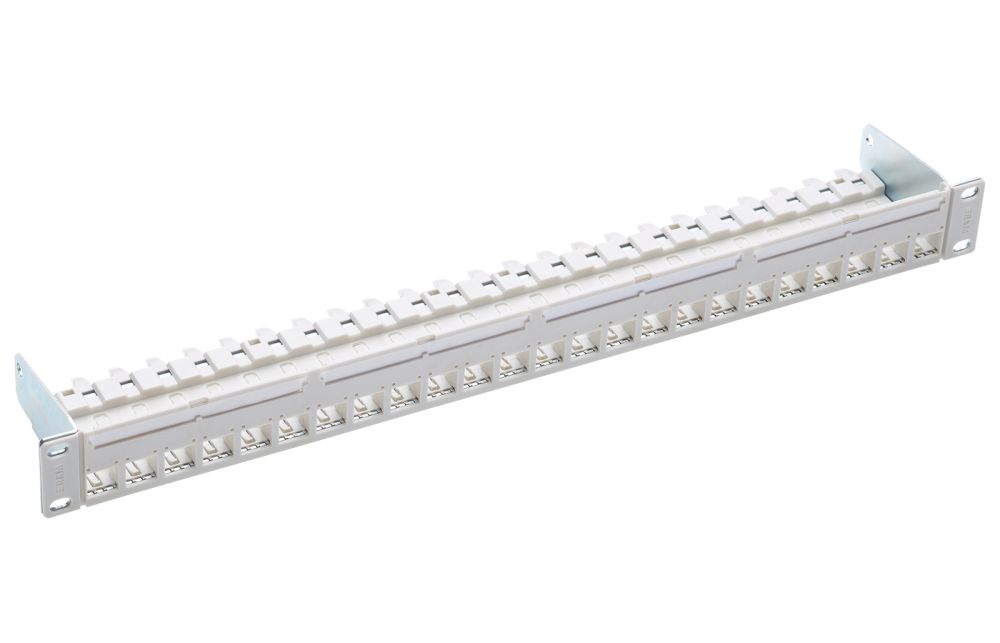

19" 1U PC Patch Panel 24-Port/u, Cat. 6A, gray, empty

Article no.: R813486
EAN / GTIN: 7611821040170
Delivery Unit: 1
Unit of Measure: Piece

With a capacity for 24 connection modules Special with Category 6AISO and Category 6A EL, unshielded.

Scope of supply

  • 19" 1U 24-port patch panel, empty

  • 19" mounting kit

  • 4 labeling strips

  • Installation instructions

Technical Data
Protection class IP IP 20
PoE Yes
Amount of height units 1 U
Rack mounting version sub-rack
Assembly empty
Holder for connector / module Special (without mounting plate)
Capacity (ports) 24
Fastening 19 "
Mechanical Data
Dimensions 482.6 mm x 43.65 mm x 83.4 mm / 19 in x 1.719 in x 3.283 in (W x H x D)
Color front, medium gray (NCS 2502-B) / steel, blue, chromatized
Material plastic: PC, fiber-glass reinforced / steel: DC01 (1.0330), 1.5 mm
Electrical Data
Standard UL Listed

Modular patch panel with integrated cable tie shelf, 19" fastening kit, labeling fields with exchangeable labeling strips. The ports are prepared for a visual color coding system and automated infrastructure management systems. Panel polycarbonate, fiber-glass-reinforced, halogen-free material, UL 94 listed and steel: DC01 (1.0330), 1.5 mm.

Color front: medium gray (NCS 2502-B) / steel: blue, chromatized.

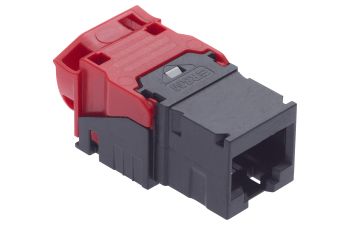

With a capacity of up to 24 unshielded RJ45 connection modules of Category 6A, Class EA for the establishing of transmission channels with up to 4 plugged connections.
