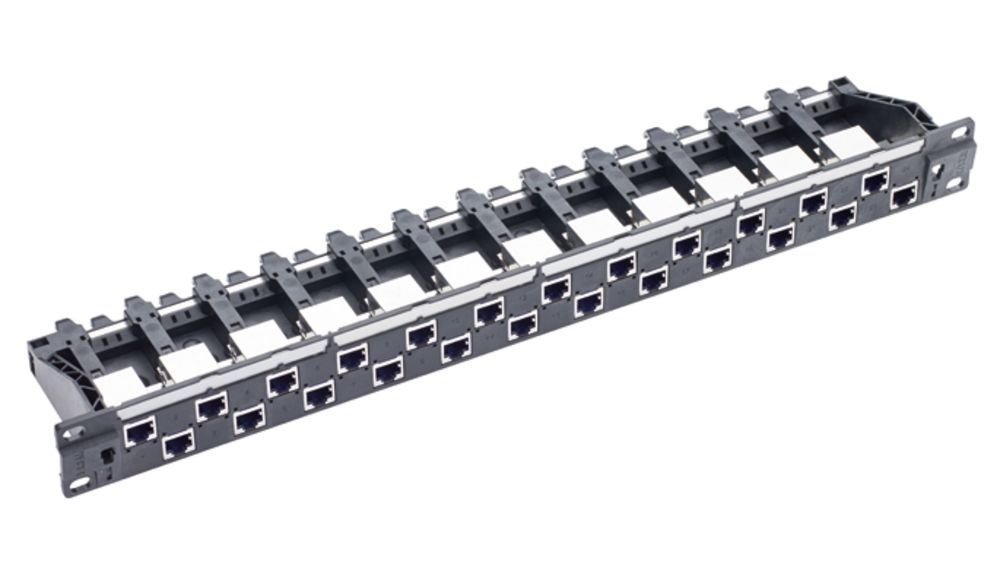

19" 1U PC Patch Panel 24xRJ45/s, Cat. 6, black, fully populated

Article no.: R812472
EAN / GTIN: 7611821041061
Delivery Unit: 1
Unit of Measure: Piece

Scope of supply

  • 19" 1U 24-port patch panel, empty, shielded

  • 24 Cat. 6 connection modules, RJ45/s incl. EMC covers and dust covers

  • 19" mounting kit

  • 4 labeling strips

  • Cable ties

  • Installation instructions

Technical Data
Number of connectors (A) 24
Category connector (A) Cat. 6
Connector type (A) RJ45
Shielding connector (A) shielded
Protection class IP IP 20
PoE Yes
Amount of height units 1 U
Rack mounting version sub-rack
Assembly fully populated
Holder for connector / module Special (without mounting plate)
Capacity (ports) 24
Fastening 19 "
Mechanical Data
Dimensions 482.6 mm x 43.65 mm x 98.4 mm / 19 in x 1.719 in x 3.874 in (W x H x D)
Color Code RAL 9005 Jet black
Material plastic: PC, fiber-glass reinforced
Electrical Data
Standard EN 50173-1
IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets
ISO/IEC 11801
24 ports populated with

RJ45 connection module of Category 6, for the establishing of transmission channels of class E and class EA with up to 4 plugged connections, and class F on 2 pairs, complies with Category 6 requirements of the standards ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1) as well as TIA/EIA 568.2-D, de-embedded tested in acc. with IEC 60603-7-5, interoperable and backwards compatible with Category 5e and Category 5.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100%.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance <50 mOhm, dielectric strength >1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 2 contact fingers for flat connectors 4.8 x 0.5 mm.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Category 6, shielded, with EMC cover, dust cover, cable tie and installation instructions.
