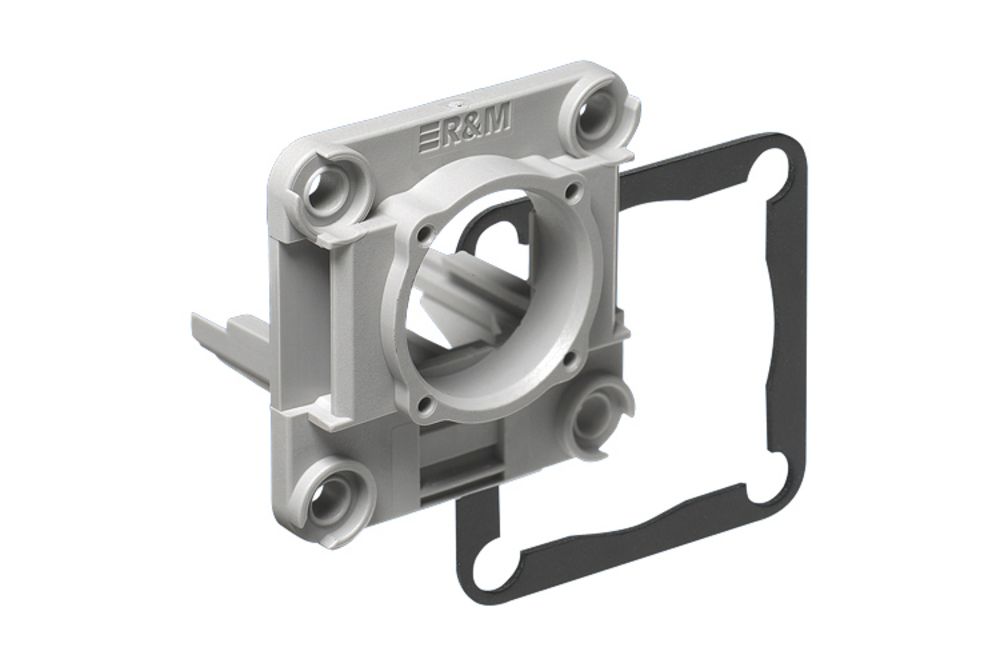

Mounting Frame FM45 shielded or unshielded IP67 Type06 frame

Article no.: R309588
EAN / GTIN: 7611821056416
Delivery Unit: 1
Unit of Measure: Piece
Protection class IP67 according to IEC 60529

Suitable for protective housing variant 06

Scope of supply

Mounting frame IP67 type06

Gasket

4 screws M3x10

4 nuts M3

Technical Data
Protection class IP IP 67 (correlates to NEMA 6P)
Colour Coding Yes, optional
UL Classification UL94-V0
Mechanical Data
Dimensions 36.0 mm x 36.0 mm x 27.5 mm / 1.417 in x 1.417 in x 1.083 in (W x H x D)
Color Code RAL 7042 Traffic gray A
Material PA (polyamide)
Environmental Characteristics
Operation temperature -40 °C to +80 °C / -40 °F to +176 °F
Electrical Data
Standard IEC 60529-6
Mounting frame Interbus designed for round mounting cutouts. Suitable for protective housing for field terminateable RJ45 plug with snap latch. Protection class IP67 according to IEC60529. Accommodates optional color coding. Polyamide, traffic gray (RAL 7042). Including gasket and screws M3 x 10mm.

Type Picture Description Article

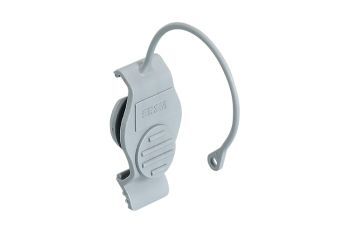

Accessories R309589
 PC
