Technical Data

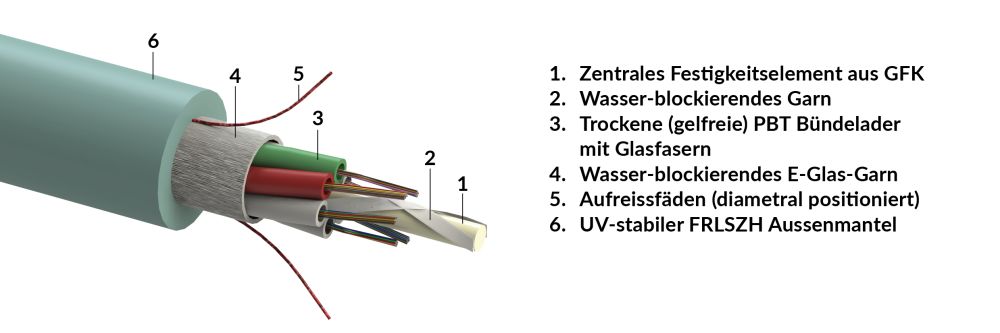

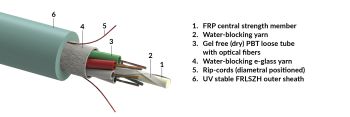

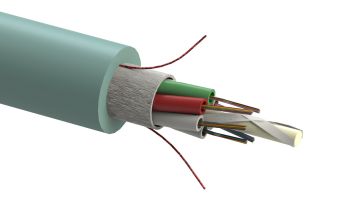

| Cable family code |
UTd6x2,3GF FiRis
|
| Cable type |
Stranded loose tube cable
|
| Cable version |
Gel-free installation cable
|
| Cable application |
universal use
|
| CPR classification |
Cca-s2,d1,a1
|
| DoP number |
D9089
|
| Fiber type |
OM3
|
| Fiber count |
48
|
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink
|
| Fiber count per tube |
12
|
| Loose tube count |
6
|
| Loose tube diameter |
2,3 mm
|
| FRP/coat. CSM nominal thickness [mm] |
2.5
|
| Armor |
Rodent protection
|
| Outer sheath thickness |
1,4 mm
|
| Outer sheath material |
UV stable FRLSZH
|
| Outer sheath color |
turquoise/aqua
|
| Sheath marking |
Ink-Jet, black
|
| Cable outer diameter |
10,6 mm
|
| Cable weight |
120.0 kg/km / 80 lbs/1000ft
|
| DIN / VDE 0888 code |
U-BQ(ZN)BH nx2,3
|
| Warranty |
R&Mfreenet
|
| Expected lifetime |
min. 30 years
|
| CPR test method |
EN 50575, EN 13501-6
|
| Standard put-up length on drum |
2’100 m ± 5%
|
| CPR classification |
Cca
|
| Minimum bending radius |
no tension - 10 x cable diameter
|
Mechanical Data
| In-service tensile strength |
2200 N
|
| In-service tensile strength acceptance criteria |
Δα ≤ 0,05 dB
|
| In-service tensile strength test method |
IEC 60794-1-21:E1A
|
| Installation tensile strength |
4000 N
|
| Installation tensile strength acceptance criteria |
Δα ≤ 0,05 dB after test
|
| Installation tensile strength test method |
IEC 60794-1-21:E1A
|
| Crush resistance long term |
2000 N/100mm
|
| Long-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage
|
| Long-term crush resistance test method |
IEC 60794-1-21:E3A
|
| Short-term crush resistance |
4000 N/100mm
|
| Short-term crush resistance acceptance criteria |
Δα ≤ 0,05 dB after release, no damage
|
| Short-term crush resistance test method |
IEC 60794-1-21:E3A
|
| Impact resistance |
10 Nm, 3 impacts, d=20 mm, R=300 mm
|
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage
|
| Impact resistance test method |
IEC 60794-1-21:E4
|
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles
|
| Torsion acceptance criteria |
no damage
|
| Torsion test method |
IEC 60794-1-21:E7
|
| Repeated bending |
R=20 x cable diameter, 25 cycles
|
| Repeated bending acceptance criteria |
no damage
|
| Repeated bending test method |
IEC 60794-1-21:E6
|
| Cable bend |
d=20 x cable diameter, 4 turns, 3 cycles
|
| Cable bend acceptance criteria |
Δα ≤ 0,05 dB after test, no damage
|
| Cable bend test method |
IEC 60794-1-21:E11A
|
| Minimum bend radius in service |
160 mm
|
| Minimum bend radius during installation |
215 mm
|
| Loose-tube colour coding |
1.red, 2.green - on each layer, rest of tubes white (fillers uncoloured or black)
|
Environmental Characteristics
| Temperature cycling |
-40 °C +70 °C / -40 °F +158 °F
|
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB
|
| Temperature cycling test method |
IEC 60794-1-22:F1
|
| Operation temperature |
-40 °C to +70 °C / -40 °F to +158 °F
|
| Storage / Transport temperature |
-40 °C to +70 °C / -40 °F to +158 °F
|
| Water penetration |
L = 3 m, h = 1 m, 24 h
|
| Water penetration acceptance criteria |
no water leakage
|
| Water penetration test method |
IEC 60794-1-22 F5B
|
| Thermal load |
2 MJ/m
|
| Flammability vertical single cable |
Pass
|
| Flammability vertical single cable test method |
IEC 60332-1-2
|
| Flammability vertical cable bundle |
Pass
|
| Flammability vertical cable bundle test method |
IEC 60332-3-22
|
| Smoke density |
Pass
|
| Smoke density test method |
IEC 61034-2
|
| Halogen free, acid gases |
Pass
|
| Halogen free, acid gases test method |
IEC 60754-2
|
| 2015 / 863 / EU - RoHS 3 |
conform
|
