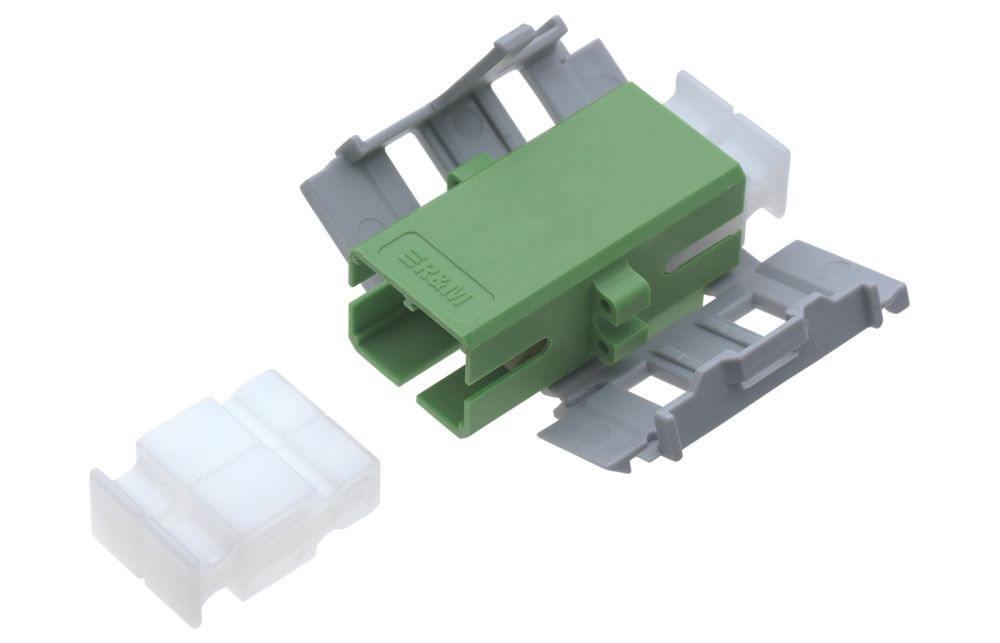

Adapter SC-RJ APC, green, ceramic SM, C, Snap-in

Article no.: R318278
EAN / GTIN: 7611821053712
Delivery Unit: 12
Unit of Measure: Piece

Scope of supply

  • SC-RJ adapter with semi-transparent dust caps

  • Snap-in frame with coding clip, gray

  • Installation instructions

Technical Data
Fiber type Singlemode (SM)
Number of connectors (A) 1
Connector type (A) SC-RJ
Connector color (A) green
Polishing plug (A) APC 8°
Protection class IP IP 20
Attenuation grade IL (A) C
Connector class adapter
Holder for connector / module Snap-in
Sleeve material ceramic
Electrical Data
Standard UL Listed
acc. to IEC 61754-24

SC-RJ adapter singlemode, duplex adapter in acc. with IEC 61754-24. Body plus flange and snap-in frame plus coding clip (gray). For fitting into 14.9 x 19.5 mm with a material thickness of between 1.5 mm and2.0 mm. Zirconia (ceramic) alignment sleeve, green housing (singlemode), material PPA / UL 94 V-0, semi-transparent plastic dust cover, allowing optical testing with test lasers without removing the cover. Adapter qualified in acc. with IEC 61753-1 for category U(uncontrolled environment).

Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mechanical specifications:

  • Mating cycles: min. 500

  • Pull-out force: min. 40 N (per connector)

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

  • Mating cycles: min. 500

  • Pull-out force: min. 40 N (per connector)

  • Optional: Visual coding, mechanical coding and lock protection.
