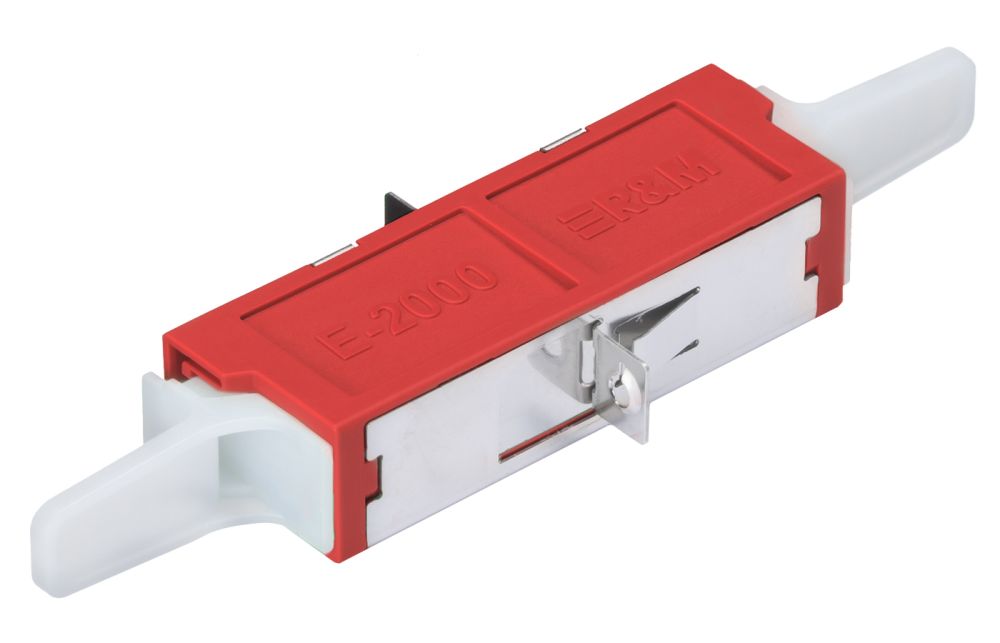

E-2000™ adapter (LSH) singlemode (SM) in acc. with IEC 61754-15 and EN 186270. Adapter body plus flange and integrated quick-mounting clip and M2 thread, color metallic, material X10CrNi18-8 for screw mounting. Housing red (HighPower), material PBT / UL 94 V-0, zirconia (ceramic) alignment sleeve, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. The adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
●Delta insertion loss: ≤ 0.1 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
●Mating cycles: min. 1000
●Pull-out force: min. 70 N
Optional:
●Visual coding, mechanical coding and lock protection
