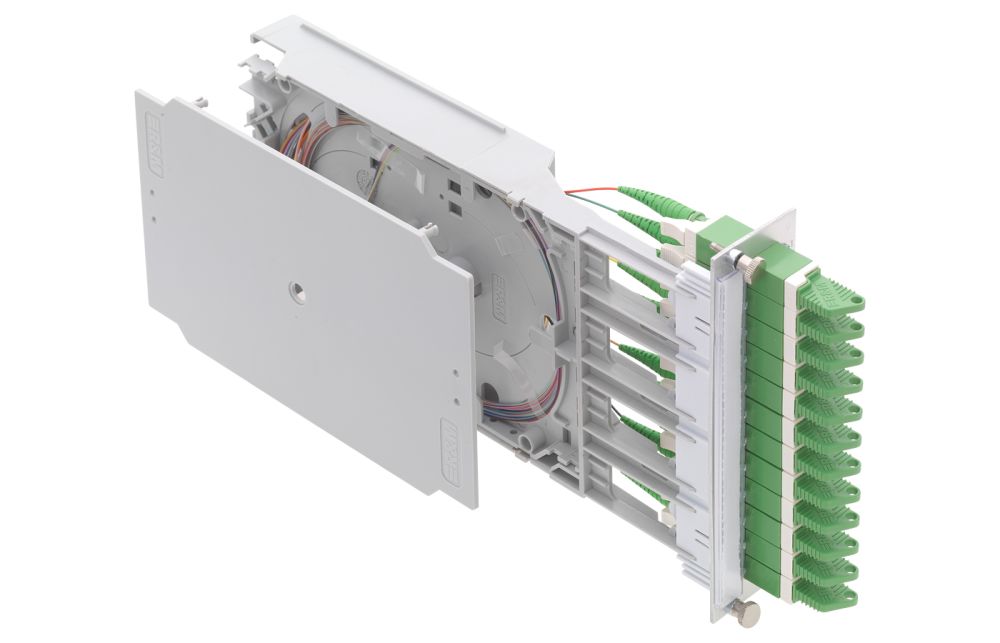

Splice module with pigtail fiber reserve and splice tray radius 35 mm, withsnap-open cover, ready for splicing, integrated hold-down cross to protect the pigtail reserve, detachable metal front panel featuring per-numbered ports and offering individual labeling options.
Features:
Dimensions: 35,2 x 128,6 x 225,2 mm
Material front panel: metal (AlMg1)
Material master module: plastic (PC+ABS halogen-free, UL 94 V-0)
Color front panel: metal color
Color master module: medium gray (NCS 2502-B)
Dimensions: 35,2 x 128,6 x 225,2 mm
Material front panel: metal (AlMg1)
Material master module: plastic (PC+ABS halogen-free, UL 94 V-0)
Color front panel: metal color
Color master module: medium gray (NCS 2502-B)
Mounted with screws 12 x
Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4
Mating cycles: min. 1000
Pull-out force: min. 70 N
Assembled with 12 x
Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB
Return loss (RL) Grade 1: ≥ 60 dB (typical ≥ 80 dB)
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
Pull-out force fiber pigtail: ≥ 5 N
