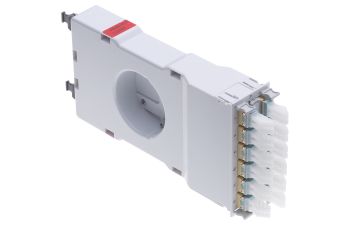

MPO Modul HD, 2xMTP12-female - 12xLC-Duplex, MM, PC/PC, type S, gray

Article no.: R809770
EAN / GTIN: 7611821041870
Delivery Unit: 1
Unit of Measure: Piece

Scope of supply

  • Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions

  • Plastic front panel equipped with 12 x LC-Duplex adapters and fan-outs inserted, rear side two MTP12-female connectors mounted

Technical Data
Fiber type Multimode (MM)
Conductor type FO semi-tight buffer, dry
Fiber class OM4
Fiber diameter G50 / 125 µm
Number of connectors (A) 2
Number of connectors (B) 12
Connector type (A) MTP12-female
Connector type (B) LC-Duplex
Connector color (A) gray
Connector color (B) heather violet
Polishing plug (A) PC
Polishing plug (B) PC
Protection class IP (A) IP 20
Protection class IP (B) IP 20
Protection class IP IP 20
Return loss (RL) ≥ 35 dB
Insertion loss (IL) max. value ≤ 0.35 dB
Attenuation grade IL (A) Cm
Wiring diagram type S
Rack mounting version slide-in unit
Adapter fastening method end cap snap-in
Sleeve material ceramic
Mechanical Data
Dimensions 43.2 mm x 109.9 mm x 214.4 mm / 1.701 in x 4.327 in x 8.441 in (W x H x D)
Color Code NCS S 2502-B
Material plastic: PC, fiber-glass reinforced, halogen-free
Environmental Characteristics
Operation temperature 10 °C to 60 °C / +50 °F to +140 °F
Electrical Data
Standard UL Listed
MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)

    MPO Modul HD front populated with 12 LC-Duplex adapters (split sleeve ceramic), at the back mounted with two MTP12-female adapters (type B), with 12-faser fan-outs, MM 50 µm OM4, assembly class in acc. with IEC61753-1. The twelve LC ports are divided into Tx and Rx so that all Tx fibers are run to a 12-fiber MPO and all Rx fiber to another12-fiber MPO. These two MPOs can be bundled in an X cable, for example. Type B adapters are installed in the modules. Symmetric cabling for 1G, 10G, 40G and 100G is therefore enabled in collaboration with type B trunks. The geometrical specifications of MPO (MTP)connectors in acc. with IEC 61754-7; incl. radius limiter at radius 30 mm and hold-down cross, fully populated, plastic front panelfeaturing per-numbered ports, tool-free locking and unlocking system and offering individual labeling options.

    Features:

  • Dimensions: 43.2 x 109.9 x 217 mm (W x H x D)

  • Material: module and front panel: plastic (PC, fiber-glass reinforced, halogen-free, UL 94 V-0)

  • Color: module and front panel: light gray (NCS 1005-R80B)
