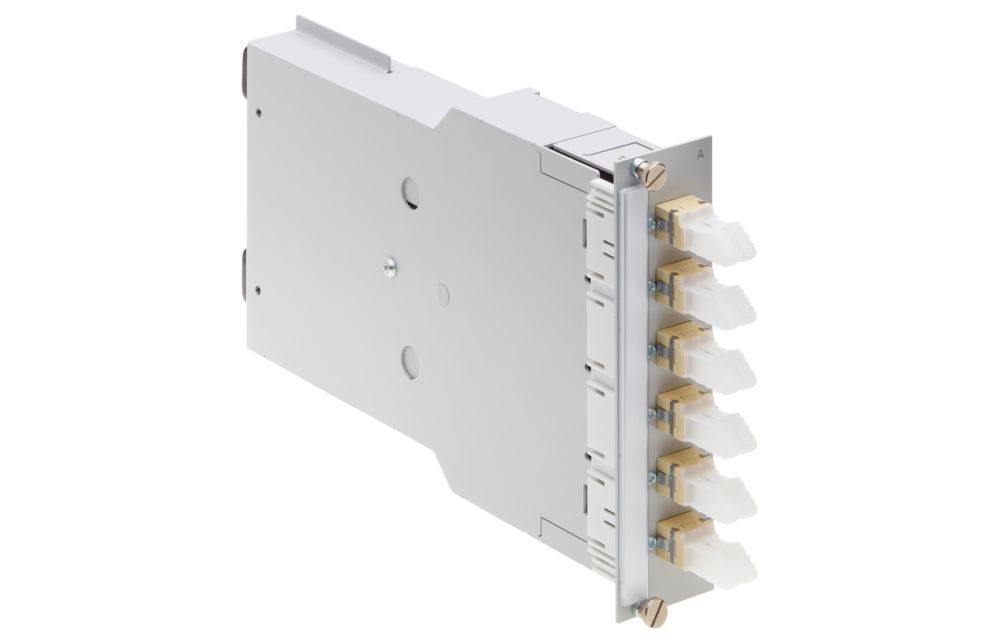

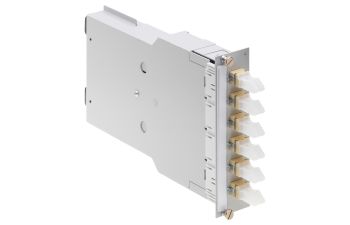

MPO Modul 7HP, metal, MTP12-male - 6xLC-Duplex, OM4, PC/PC, ceramic, type A, gray

Article no.: R514563
EAN / GTIN: 7611821047186
Delivery Unit: 1
Unit of Measure: Piece

Connectivity method: type A.

Polishing connector MTP: PC.

Polishing connector LC: PC.



Scope of supply

  • Slide-in unit, radius limiter radius 35 mm, labeling strips and installation instructions

  • Metal front panel equipped with 6 x LC-Duplex adapters and fan-out inserted, rear side one MTP12-male connector mounted

Technical Data
Fiber type Multimode (MM)
Fiber class OM4
Fiber diameter G50 / 125 µm
Number of connectors (A) 1
Number of connectors (B) 6
Connector type (A) MTP12-male
Connector type (B) LC-Duplex
Connector color (A) black
Connector color (B) heather violet
Polishing plug (A) PC
Polishing plug (B) PC
Protection class IP (A) IP 20
Protection class IP (B) IP 20
Return loss grade RL (A) 4
Protection class IP IP 20
Return loss grade RL (B) 3
Attenuation grade IL (A) Cm
Attenuation grade IL (B) Bm
Wiring diagram type A
Rack mounting version slide-in unit
Adapter fastening method end cap
Assembly fully populated
Sleeve material ceramic
Mechanical Data
Dimensions 35.0 mm x 129.0 mm x 215.0 mm / 1.378 in x 5.079 in x 8.465 in (W x H x D)
Color Code NCS S 2502-B
Electrical Data
Standard MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)

    MPO Modul, front populated with 6 LC-Duplex adapters (split sleeve zirconia ceramic), at the back mounted with one MTP12-male adapter, with 12-faser fan-outs, MM G50 50/125 µm (OM4), assembly class in acc. withIEC 61753-1; the wiring inside the module is straight, key up to key down (according to method A from standard TIA 568-C); geometrical specifications of MPO (MTP) connectors in acc. with IEC 61754-7; incl. radius limiter at radius 35 mm and hold-down cross, fullypopulated, detachable metal front panel featuring per-numbered ports and offering individual labeling options.

    Features:

  • Dimensions: 35 (7HP) x 129 (3U) x 215 mm (W x H x D)

  • Material: front panel metal, MPO Modul sheetsteel (DC01)

  • Color: front panel metal color, MPO Modul medium gray (NCS 2502-B)
