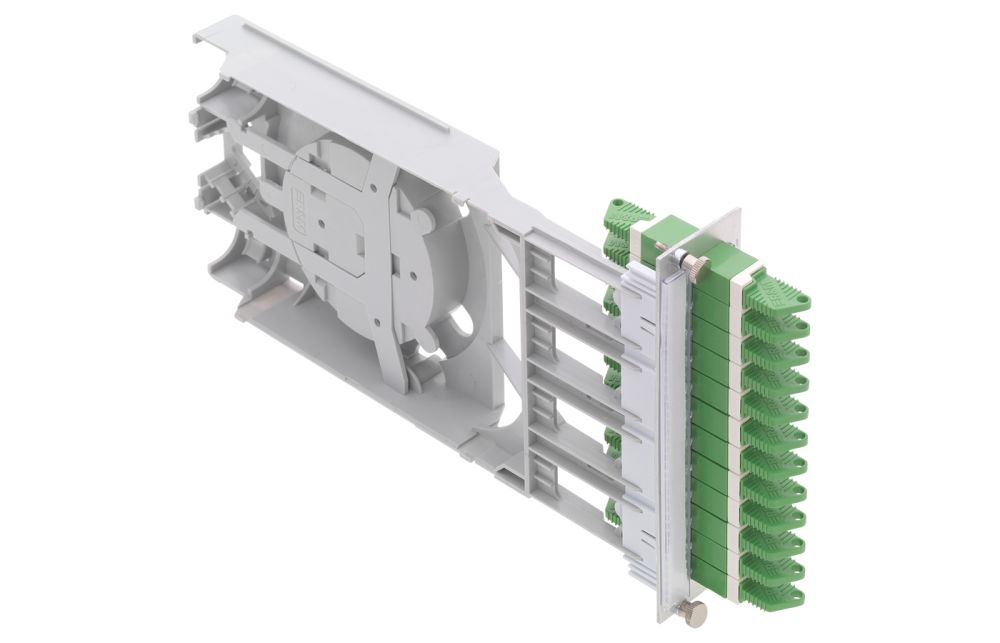

FiberModul 7HP, metal, breakout, 12xE-2000™ singlemode, PC, ceramic

Article no.: R318966
EAN / GTIN: 7611821053156
Delivery Unit: 1
Unit of Measure: Piece


Scope of supply

  • Slide-in unit, fastening material, labeling strips and installation instructions;

  • Metal front panel equipped with 12 x E-2000™ adapters.

Technical Data
Fiber type Singlemode (SM)
Number of connectors (A) 12
Connector type (A) E-2000™
Connector color (A) blue
Color (A2) blue
Lever- / frame-coding (A) Color
Polishing plug (A) PC
Protection class IP (A) IP 20
Protection class IP IP 20
Rack mounting version slide-in unit
Adapter fastening method end cap
Assembly fully populated
Capacity (ports) 12
Sleeve material ceramic
Version breakout
Mechanical Data
Dimensions 35.0 mm x 129.0 mm x 225.0 mm / 1.378 in x 5.079 in x 8.858 in (W x H x D)
Color Code NCS S 2502-B
Material plastic: PC, halogen-free
Electrical Data
Standard UL Listed
Adapter acc. with IEC 61754-15 and EN 186270

  • Up to 12 plugged connections on 7HP

  • Guaranteed bending radiusof 35 mm

  • Pre-numbered front plates, extra labeling field

  • Easy detachable metal front panels

  • Choice of cable entry of 45° or 90°

  • Hold-down cross protecting the fibers

  • Up to 144 fibers per 19" 3U Global patch panel

    Breakout module with integrated hold-down cross to protect the patch cord reserve, equipped with adapters, detachable metal front panel featuring per-numbered ports and offering individual labeling options.

    Fitted with 12 x E-2000™ adapters (LSH) singlemode in acc. with IEC 61754-15 and EN 186270. Adapter body plus flange and two integral hexagonal nuts M2, mounted with screws. Zirconia (ceramic) alignment sleeve, blue housing (singlemode), blue coding frame, material PBT / UL 94 V-0, integral self-closing plastic laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the cover. The adapter is qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).

    Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

    • Mechanical specifications:

  • Mating cycles: min. 1000

  • Pull-out force: min. 70 N

    • Features:

  • Dimensions: 35 (7HP) x 129 (3U) x 225 mm (W x H x D)

  • Material front panel: metal (AlMg1)

  • Material master module: plastic (PC+ABS, halogen-free, UL 94 V-0)

  • Color front panel: metal color

  • Color master module: medium gray (NCS 2502-B)
