Polaris 4 housing

Small, but full of power: The Polaris 4 housing is the compact all-rounder among distribution housings. The decisive advantage is packing density, where the Polaris 4 housing is unbeatable. Versatile and enormously powerful!

8  products

  • Polaris-box 4 SCM

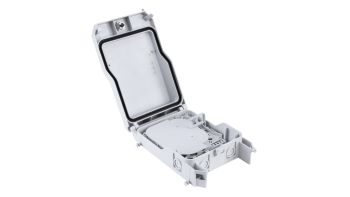

    Polaris-box 4 SCM

    The Polaris-box 4 is the smallest in the family and fits even into tiny spaces.

    The basic configuration with one fiber inlay supports up to 12 crimp (ANT) or shrink (HS) splice connections.

    The newfiber inlay can be retrofitted with 4 additional FMTS Compact splice trays.

    For plug connections, a adapter field for up to 4SC, LC duplex adapters is available.

  • Polaris-box 4 SCM with lock

    Article no.: R891204

  • Polaris-box 4 SCM without lock

    Article no.: R891205
  • Polaris-box 4

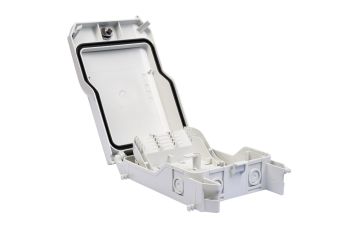

    Polaris-box 4

    The Polaris-box 4 is the smallest in the family and fits even into tiny spaces.

    The basic configuration with one fiber inlay supports up to 12 crimp (ANT) or shrink (HS) splice connections.

    It‘s hard to believe, but the box offers space for an additional fiber storage under the first insert.

    If required, a second fiberinlay can be retrofitted.

    For plug connections, a coupling field for 2 or 4 SC, LC duplex or E-2000™ adapters is available.

  • Polaris-box 4 with lock

    Article no.: R859107

  • Polaris-box 4 without lock

    Article no.: R859106

The Polaris 4 box is the smallest of the Polaris family. The Polaris Box 4 provides space for 12 splice connections and is made of high quality PC and ASA plastic. The cable inputs are suitable for both outdoor and indoor use according to IP65 protection regulations. The basic configuration of the Polaris-Box 4 offers space for 2 or 4 connectors. The patch, splice and splitter configuration can be individually configured or upgraded to up to 24 splice connections with an additional splice cassette. The lid can be removed more easily or flipped open up to 120 degrees, allowing for easy installation and user-friendly maintenance. In addition, the Polaris Box 4 can be locked, preventing unauthorized access and unapproved modifications. Inside the Polaris Box 4, there is also storage space for fiber overlengths to maintain clarity of cable connections and ensure re-splicing when needed.



Polaris Box 4 - various fields of application

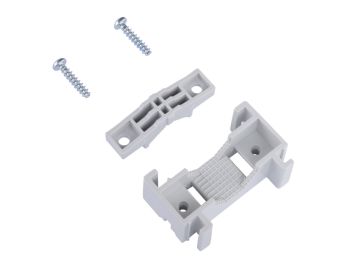

Thanks to its compact size, the Polaris Box 4 can be installed in various buildings and areas of use. It is suitable for entry points on buildings, for example as a floor distributor. It can also be used in riser zones and as a fiber connection in offices and larger building complexes. Thanks to its compact size, you have a free choice of application points. Polaris Box 4 fits into small niches and spaces. Due to the locking mechanism, you do not have to worry about unauthorized access. You have direct access to the cables and fibers and can protect the connectors with the help of an additional cover. Additionally, you can upgrade your Polaris 4 box with a strain relief kit for the Polaris cable entry and thus relieve the strain on the cable entries. Again, installation of the two-piece kit is quick and easy. The strain relief is made of PC/ASA plastic and also matches the color of the Polaris Box 4. If you have any further questions about our Polaris Box 4, its installation, project suitability, utilization as well as the areas of application of the Polaris 4 Box, please do not hesitate to contact our professionals in the Polaris product family. We will help you with both the planning and the execution of your project.
